OUR BUSINESS
Browse Components
At Primo, we believe exceptional products create their own market demand.
DISCLAIMER
Primo branded products and components are available only through authorized Primo Incorporated Sales Offices. Primo is not responsible for any products purchased from any other source and all questions, comments or issues must be addressed directly with the unauthorized source who sold the product.
If you would need more information on any of our components… Call us at 972-548-9807 or Contact us thru the link below.
· DYNAMIC ·
Receivers
For Questions and Inquiries?
 |
Model |
Diameter (mm) |
Height (mm) |
Sensitivity 0dB=1V/Pa (Center) |
Impedance (KΩ) |
Weight (G) |
Specs (pdf) |
|---|---|---|---|---|---|---|---|
 |
DH60 | 35.0 | 18.0 | 96.5 | 150 | 32.8 |  |
 |
DH63C1 | 45.8 | 19.3 | 98.5 | 150 | 76.0 | |
· ELECTRET ·
Omni-Directional
For Questions and Inquires?
|
Model |
Diameter (mm) |
Height (mm) |
Sensitivity 0dB=1V/Pa (Center) |
Vcc (V) |
RL (KΩ) |
Impedance (KΩ) |
S/N Ratio (dB) |
Specs (pdf) |
|---|---|---|---|---|---|---|---|---|---|
 |
EM215 | 5.8 | 2.0 | -67.0 | 2.0 | 15.0 | 1.1 | 46 | |
 |
EM246 ASS'Y | 5.8 | 2.1 | -44.0 | 2.0 | 15.0 | 1.1 | 68 | |
 |
EM267N | 5.8 | 2.0 | -40.0 | 3.0 | 2.0 | 1.6 | 60 | |
 |
EM272J | 10.0 | 4.5 | -28.0 | 5.0 | 3.9 | 2.4 | 80 | |
 |
EM273 | 10.0 | 4.5 | -37.0 | 5.0 | 5.6 | 0.6 | 80 | |
 |
EM281 | 5.8 | 2.0 | -39.0 | 3.0 | 3.0 | 0.6 | 71 | |
 |
EM288Z1 | 4.0 | 2.0 | -43.0 | 2.0 | 15.0 | 1.1 | 70 | |
 |
EM289 | 5.8 | 2.0 | -44.0 | 2.0 | 15.0 | 1.1 | 68 | |
 |
EM413 | 5.8 | 2.0 | -40.0 | 2.0 | 15.0 | 1.1 | 74 | |
 |
EM419N | 5.8 | 2.0 | -29.0 | 3.3 | 4.7 | 2.3 | 75 | |
 |
EM419NM1 | 5.8 | 2.0 | -32.0 | 1.8 | 3.3 | 1.9 | 75 | |
Bi-Directional
For Questions and Inquiries?
|
Model |
Diameter (mm) |
Height (mm) |
Sensitivity 0dB=1V/Pa (Center) |
Vcc (V) |
RL (KΩ) |
Impedance (KΩ) |
S/N Ratio (dB) |
Specs (pdf) |
|---|---|---|---|---|---|---|---|---|---|
 |
EM230N | 5.8 | 2.0 | -51.0 | 3.0 | 2.0 | 1.6 | 58 | |
 |
EM283Z1 | 10.0 | 4.5 | -39.0 | 3.0 | 2.0 | 1.4 | 72 | |
 |
EM410N | 10.0 | 4.5 | -44.0 | 1.5 | 2.0 | 1.5 | 72 | |
Uni-Directional
For Questions and Inquiries?
|
Model |
Diameter (mm) |
Height (mm) |
Sensitivity 0dB=1V/Pa (Center) |
Vcc (V) |
RL (KΩ) |
Impedance (KΩ) |
S/N Ratio (dB) |
Specs (pdf) |
|---|---|---|---|---|---|---|---|---|---|
 |
EM235 | 10.0 | 4.5 | -37.0 | 1.5 | 2.0 | 1.8 | 69 | |
 |
EM265N | 5.8 | 2.0 | -48.0 | 1.5 | 2.0 | 1.6 | 58 | |
 |
EM282 | 10.0 | 4.5 | -41.0 | 5.0 | 5.6 | 0.6 | 78 | |
 |
EM284 | 10.0 | 4.5 | -39.0 | 3.0 | 2.0 | 1.4 | 72 | |
 |
EM297Z1 | 10.0 | 4.5 | -33.0 | 3.0 | 2.0 | 1.4 | 78 | |
 |
EM301 | 10.0 | 4.5 | -45.0 | 2.0 | 15.0 | 1.3 | 71 | |
 |
EM405N | 5.8 | 2.0 | -49.0 | 1.5 | 2.0 | 1.6 | 59 | |
 |
EM406N | 10.0 | 4.5 | -37.0 | 3.0 | 2.0 | 1.4 | 74 | |
 |
EM408Z3 | 10.0 | 4.5 | -37.0 | 3.0 | 2.0 | 1.4 | 74 | |
 |
EM411N | 10.0 | 4.5 | -45.0 | 5.0 | 5.6 | 0.6 | 74 | |
 |

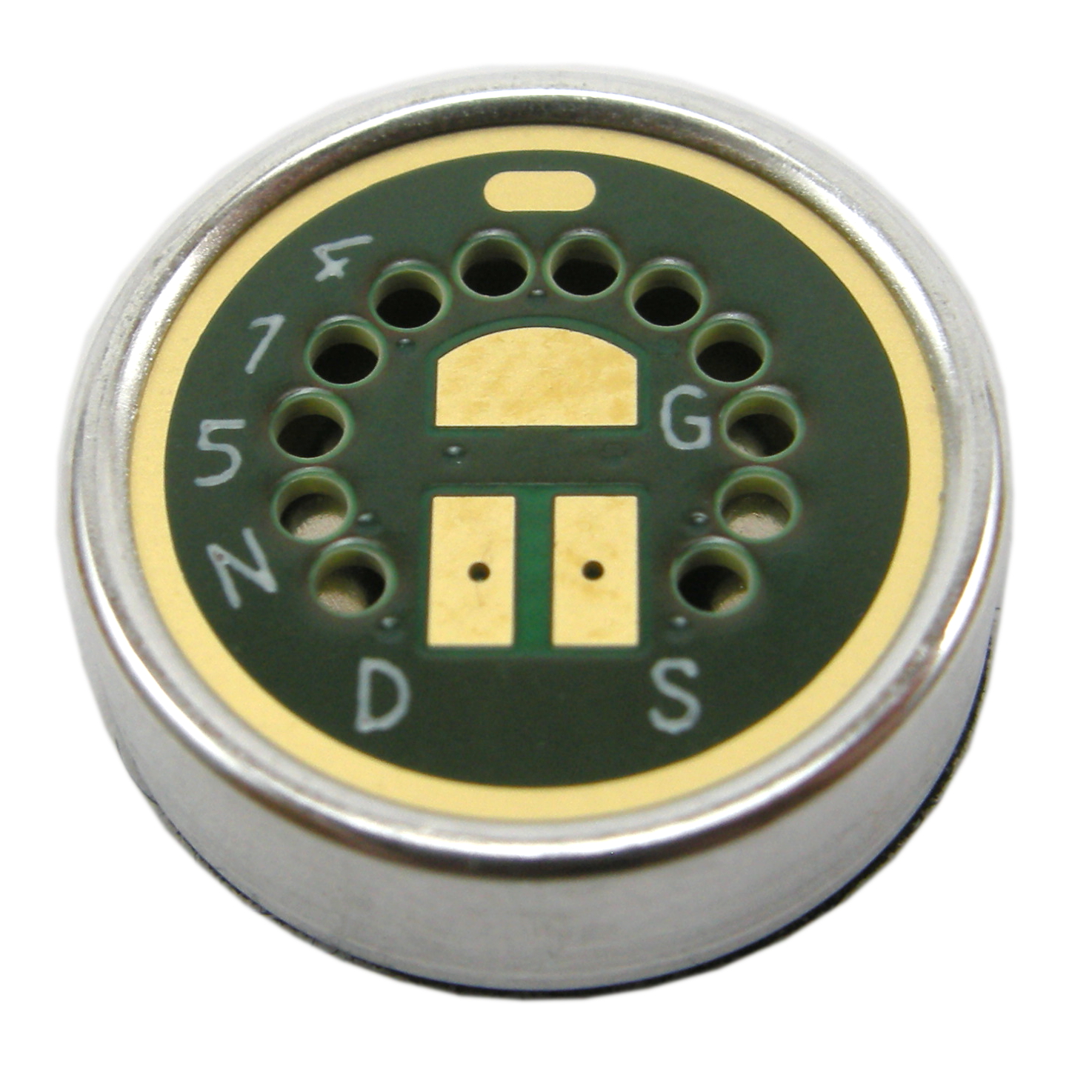

EM415N | 14.6 | 4.6 | -42.0 | 5.0 | 5.6 | 0.6 | 78 | |
· MEMS MICROPHONE ·
For Questions and Inquires?
|
Model |
Size (mm) |
Sensitivity |
Vcc (V) |
Impedance (Ω) |
S/N Ratio (dB) |
Specs (pdf) |
|---|---|---|---|---|---|---|---|
· ACCESSORIES ·
Rubber Boots
For Questions and Inquiries?
|
Model |
Diameter (mm) |
Height (mm) |
Designed For Element Size |
Material |
Specs (pdf) |
|---|---|---|---|---|---|---|
 |
100A | 26.0 | 6.0 | 10x5 | Rubber | |
 |
100E | 12.4 | 6.0 | 10x5 | Rubber | |
 |
100F | 11.5 | 7.8 | 10x5 | Rubber | |
 |
100G | 16.5 | 7.0 | 10x5 | Rubber | |
 |
123B | 8.0 | 5.2 | 5.8x3 | Rubber | |
 |
123F | 8.8 | 6.1 | 5.8x3 | Rubber | |
 |
123G | 8.0 | 4.2 | 5.8x3 | Rubber | |
 |
158B | 7.0 | 2.6 | 5.8x2 | EPDM | |
Print All Product List
